Convert AI-Generated Sketches to Editable Vector Graphics (StyleAI Guide)
Step-by-step guide to turning StyleAI sketches into editable vector files for fashion tech packs.
Jun 02, 2025
Contents
1️⃣ First, getting started with AI sketch generation2️⃣ Importing and preparing in Adobe Illustrator3️⃣ Then go to Window > Object > Image Trace4️⃣ Configuring image trace settingsAfter expansion, your image is now composed of individual line segments that can be edited independently. This is where you can really customise your technical flat.1️⃣ First, getting started with AI sketch generation

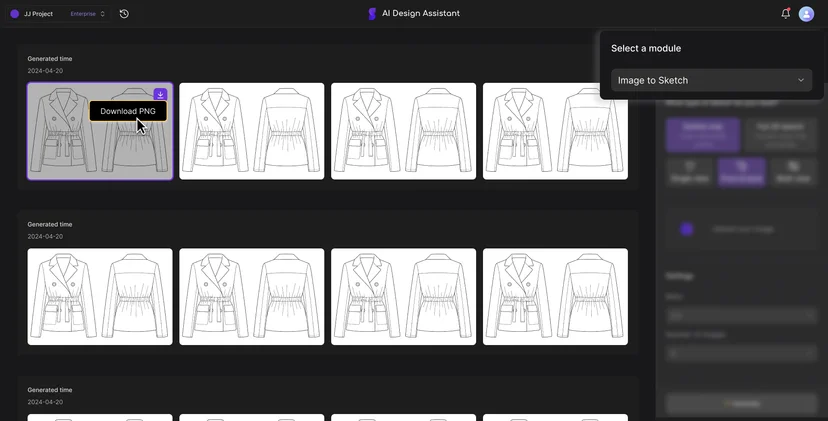

Generate technical flat on AI design assistant and click thedownload PNG button
2️⃣ Importing and preparing in Adobe Illustrator
Open Adobe Illustrator and import your downloaded AI-generated technical flat.

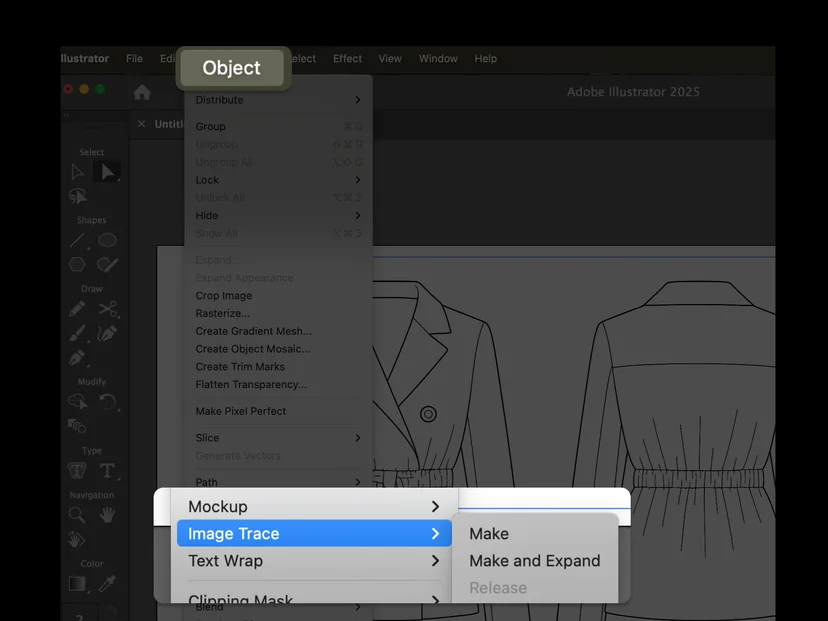

3️⃣ Then go to Window > Object > Image Trace
4️⃣ Configuring image trace settings

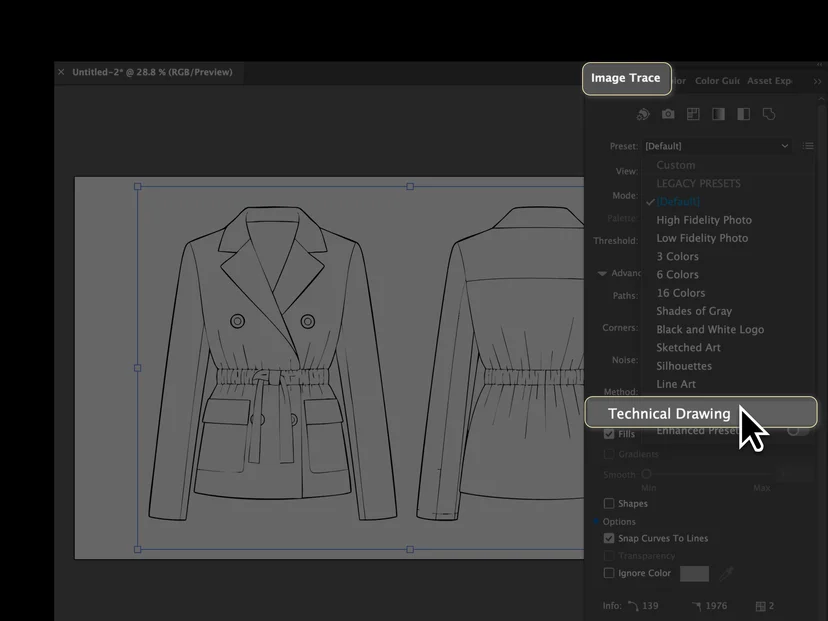

Select the

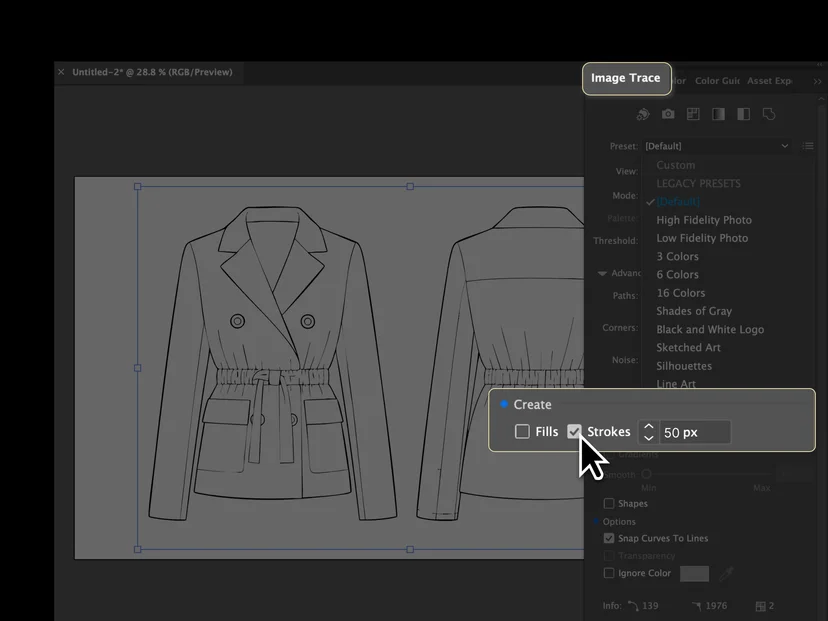

Technical Drawingpreset from the dropdown menu.Make sure to check the

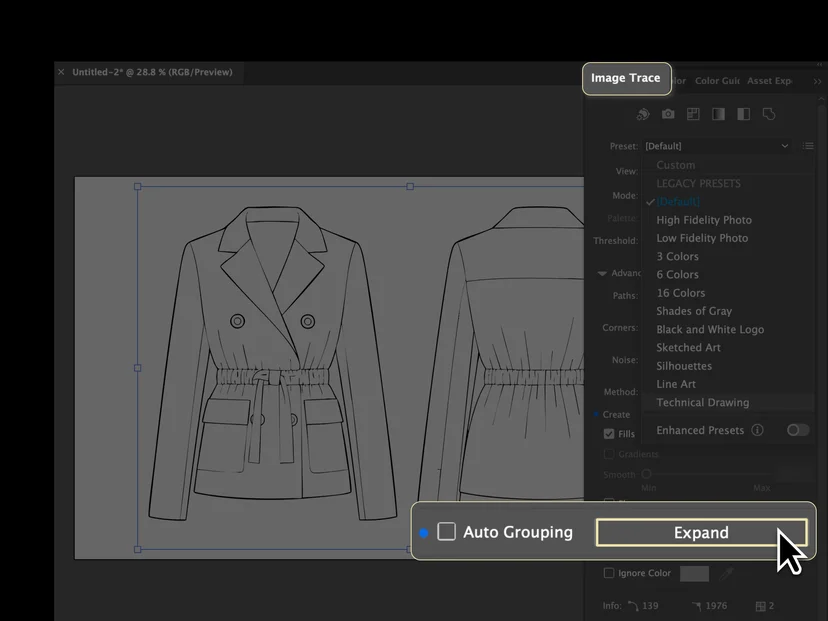

Create Strokesoption.Once you’re satisfied with the preview, click
Expandto convert the traced image into editable vector paths.
After expansion, your image is now composed of individual line segments that can be edited independently. This is where you can really customise your technical flat.
